Lift Out
A practical, cost-effective solution for windows that require occasional access with removable panels
Lift Out

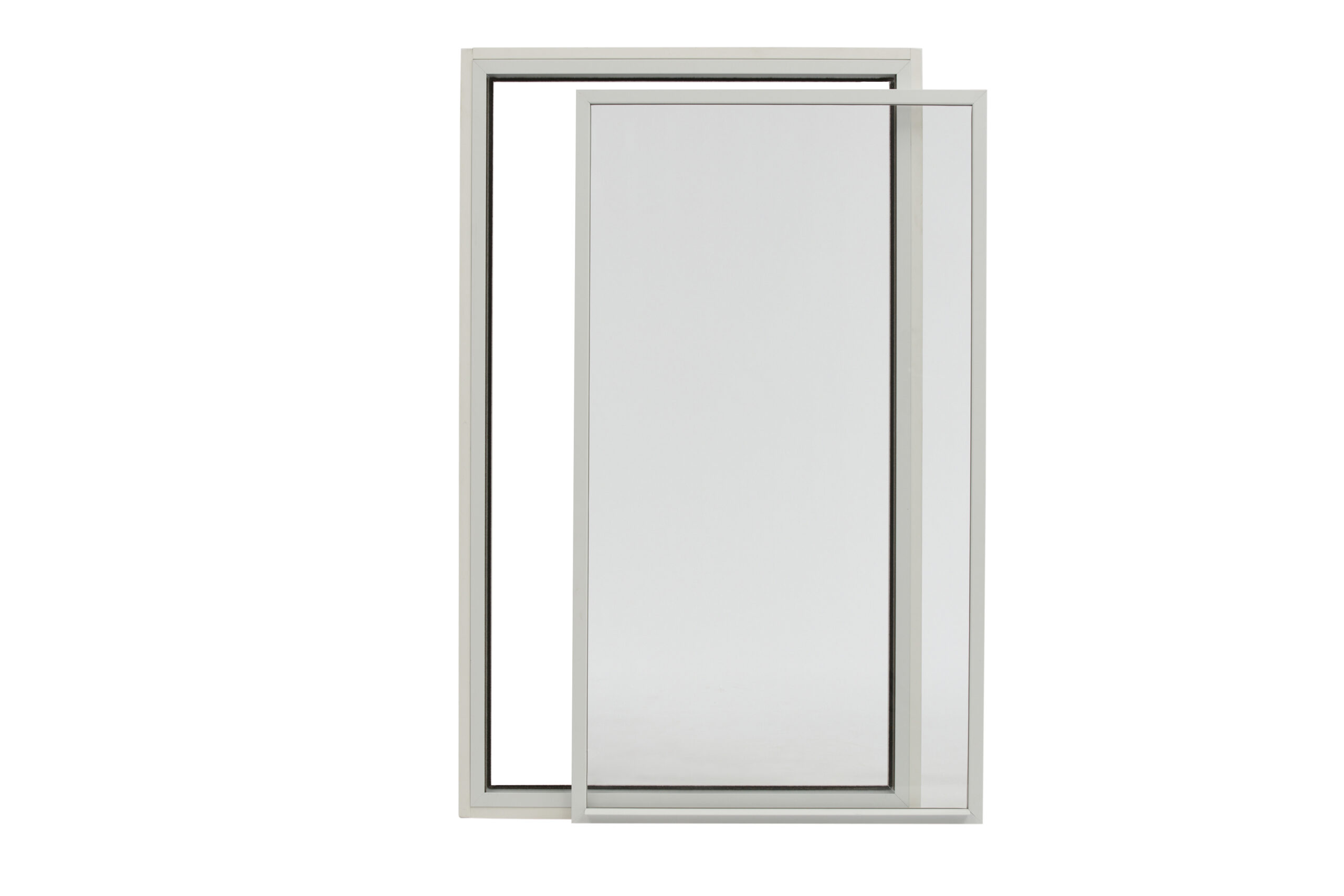

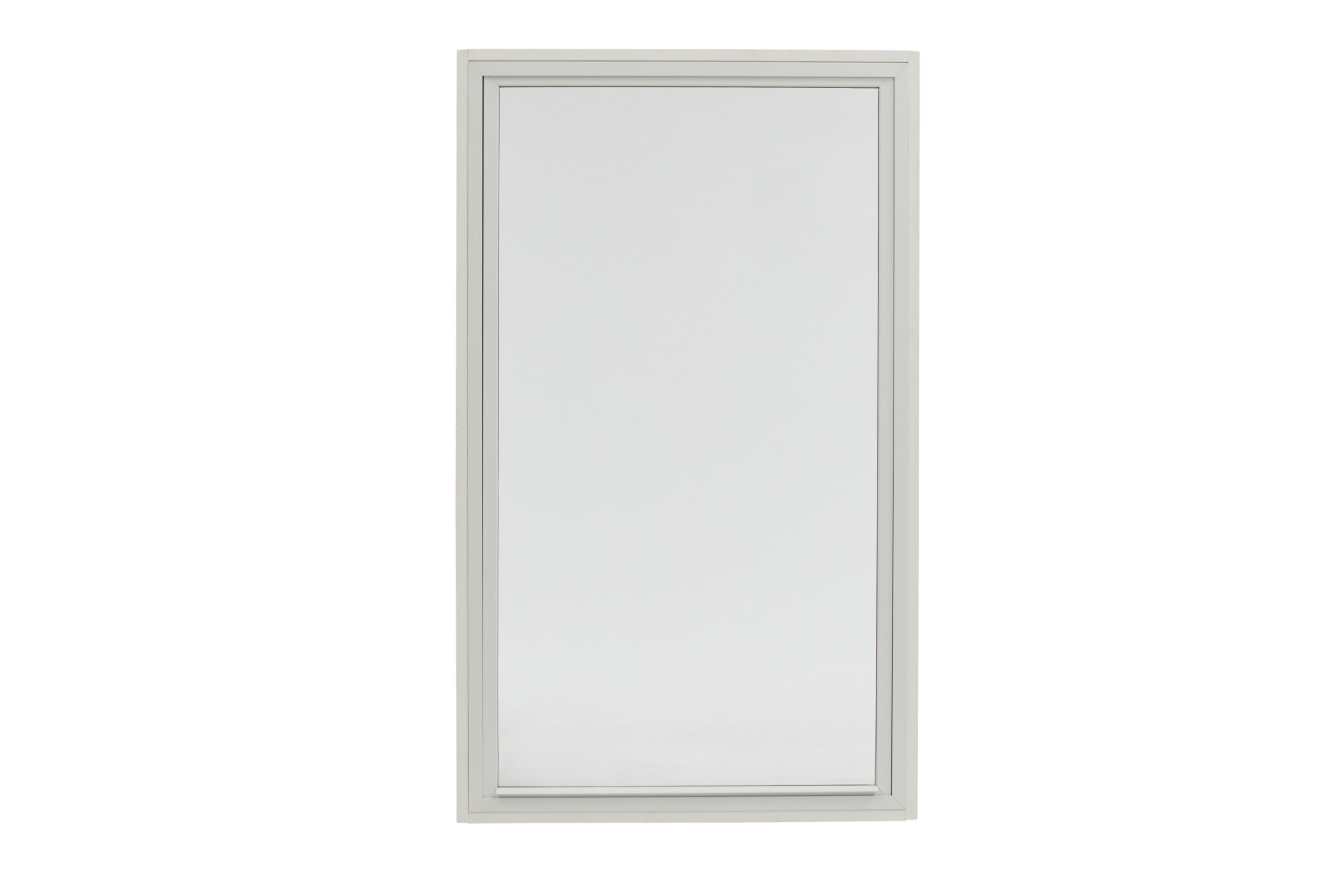

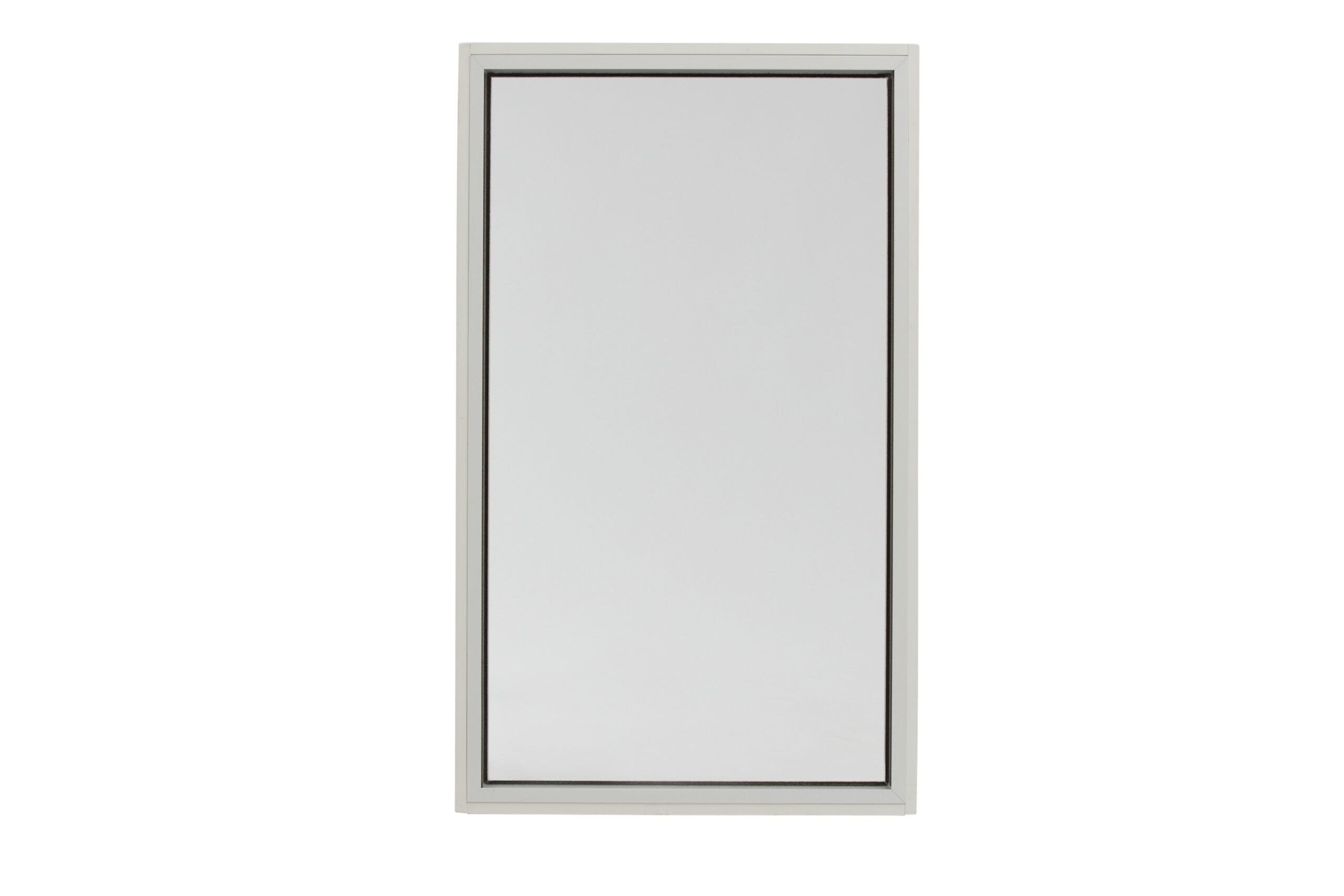

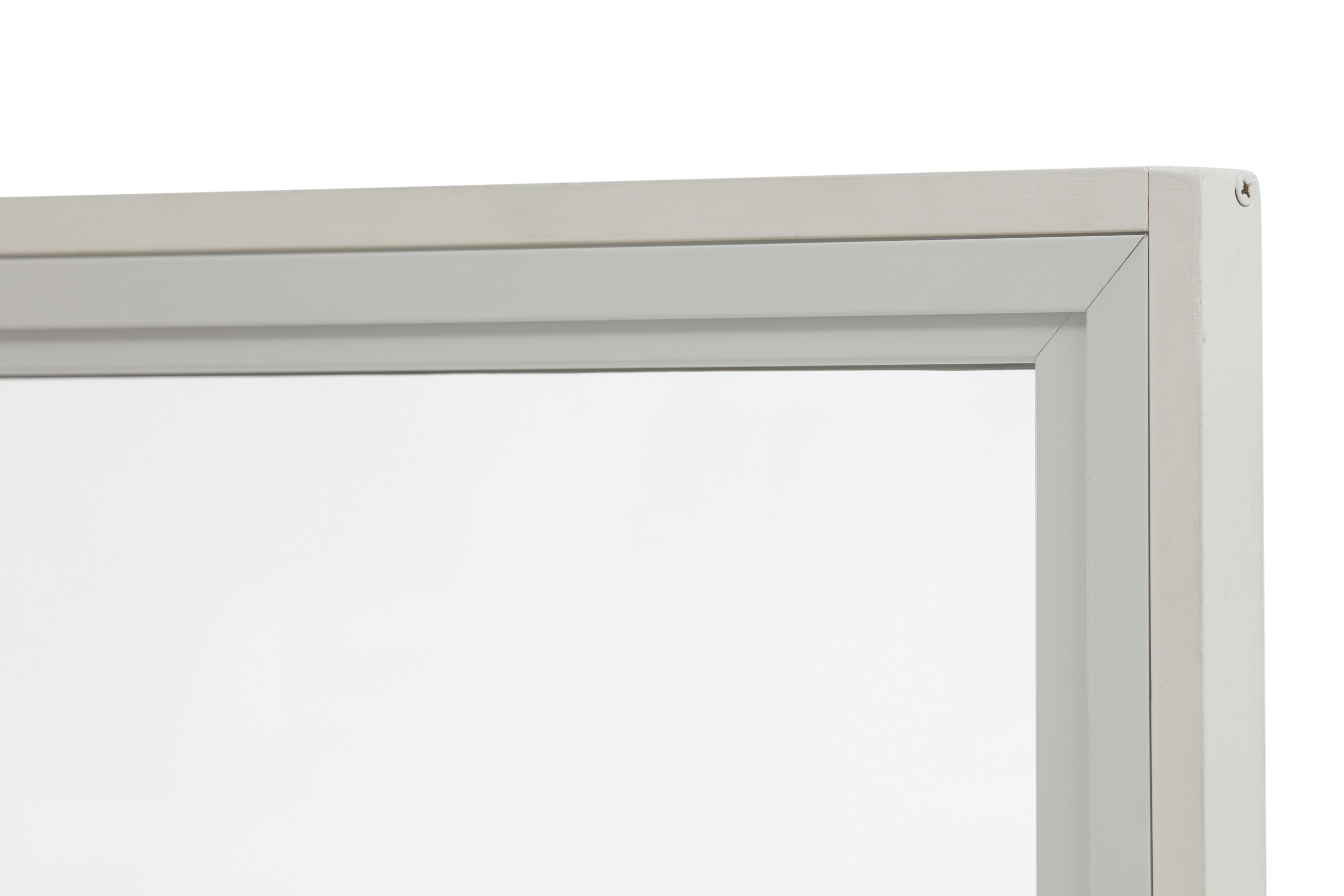

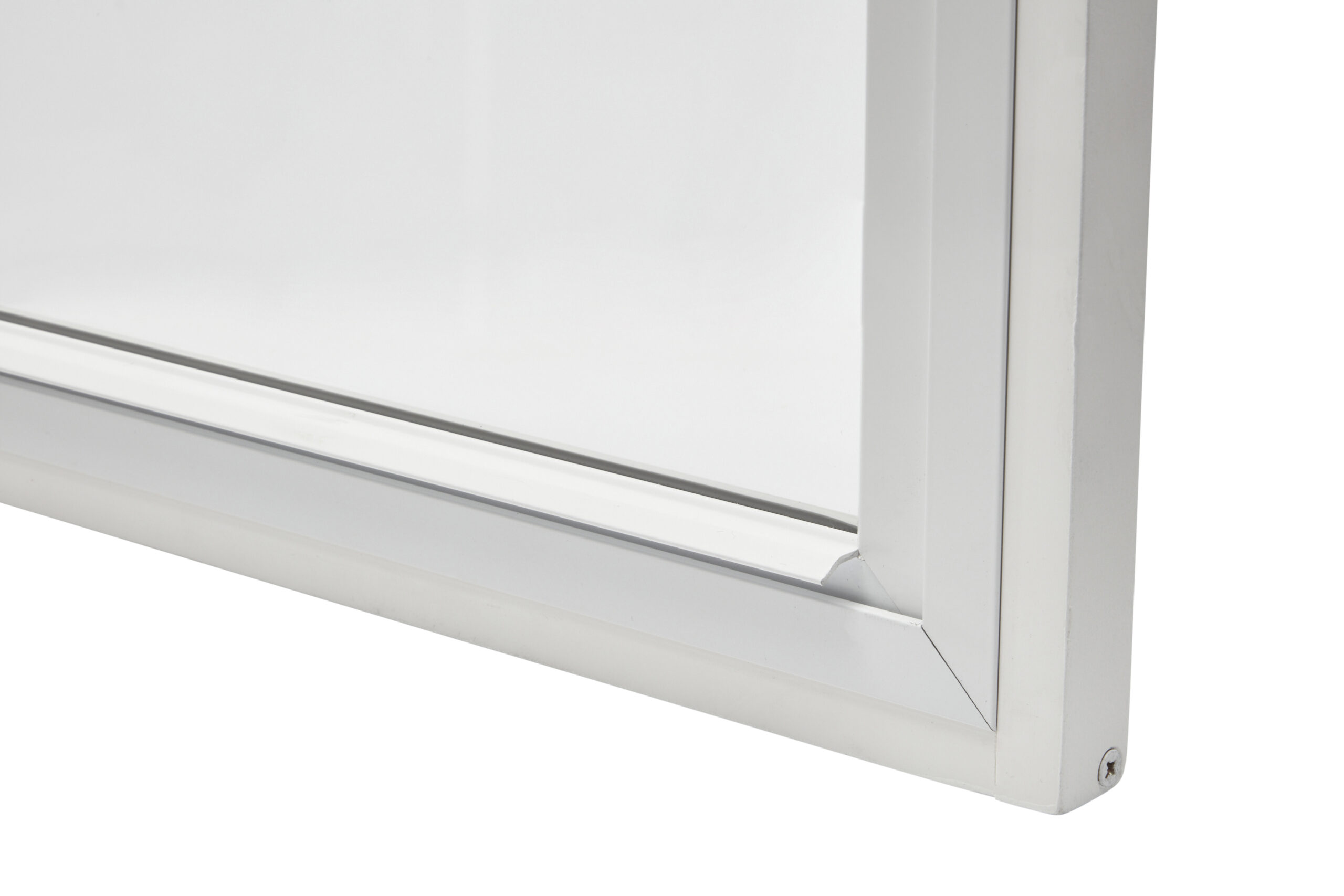

Granada lift-out units offer a practical, cost-effective solution for windows that require occasional access. Each removable panel sits within its own slimline aluminium frame and can be lifted out easily using the Easy Lift Fin.
Face-fixed or reveal-fixed, these units are ideal for decorative or non-opening windows, providing discreet, unobstructed views while enhancing acoustic and thermal performance. Perfect for both commercial and residential applications, lift-out secondary glazing combines convenience, durability, and a clean, unobtrusive design.
Ideal for both commercial and residential projects, lift-out units combine convenience, durability, and a clean, unobstructed view, offering a flexible secondary glazing solution tailored to your requirements.
Technical Performance Data
Full panel sizing and acoustic performance data for the Lift Out range. The slimmest sightlines in the Granada range - ideal for fixed, decorative, and heritage applications including arched and shaped openings.
Values are Rw (dB) measured to BS EN ISO 717-1. All tests performed with a 200mm air gap (glass-to-glass) and a 6mm single-glazed toughened primary window in a hardwood frame. Deduct 1 dB for a 150mm air gap; deduct 1–4 dB for a 100mm air gap.
| Secondary Glass | Rw (dB) Weighted | Rw+C (dB) Traffic weighted | Rw+Ctr (dB) Low-freq weighted |
|---|---|---|---|
| 4mm Toughened | 47 | 44 | 41 |
| 6mm Toughened | 49 | 46 | 42 |
| 6.4mm Laminate | 49 | 47 | 43 |
| 6.8mm Laminate | 49 | 47 | 43 |
| 8mm Toughened | 49 | 47 | 43 |
| 8.8mm Laminate | 49 | 48 | 44 |
| 10.8mm Laminate | 49 | 48 | 44 |
Rw data extrapolated from physical tests at Element High Wycombe (23/06/22 & 12/07/22). Test configuration: 1,200 × 1,200mm unit, 200mm air gap, 6.87mm standard laminate secondary glass, 6mm single-glazed toughened primary in a hardwood frame.
Data extrapolated from physical testing at Element High Wycombe (23/06/22 and 12/07/22).
Download Performance Data Sheet: GSG-DS002 Rev A — AcousticAll dimensions in mm. Sizes are for guidance only and depend on glass type, subframe, and installation method. Contact us to discuss units outside the listed parameters.
| Glass Type | Min Width | Min Height | Max Width | Max Height | Aspect Ratio (W:H) | Max Panel Weight |
|---|---|---|---|---|---|---|
| 4mm Toughened | 125mm | 250mm | 3,250mm | 3,250mm | N/A | 50 kg |
| 6mm Toughened | 125mm | 250mm | 3,250mm | 3,250mm | N/A | 50 kg |
| 6.4mm Laminate | 125mm | 250mm | 3,250mm | 3,250mm | N/A | 50 kg |
| 6.8mm Laminate | 125mm | 250mm | 3,250mm | 3,250mm | N/A | 50 kg |
| 8.8mm Laminate | 125mm | 250mm | 3,250mm | 3,250mm | N/A | 50 kg |
| 10.8mm Laminate | 125mm | 250mm | 3,250mm | 3,250mm | N/A | 50 kg |
| Product Range | Glass Options | Max. Window Size (Including 16mm Timber) | Installation Options | |||
|---|---|---|---|---|---|---|
| Width (mm) | Height (mm) | Area (m²) | Face Fix Through Timber | Reveal Fix Through Frame | ||
| Classic | 4.0mm tough | 2070 | 2057 | 1.7 | TIM-25x16 | TIM-25x16 |
| Enhanced | 6.0mm tough | 3220 | 3307 | 3.6 | TIM-25x16 | TIM-25x16 |
| Enhanced | 6.4mm Laminate | 3220 | 3307 | 3.4 | TIM-25x16 | TIM-25x16 |
| Enhanced | 6.8mm Laminate | 3220 | 3307 | 3.2 | TIM-25x16 | TIM-25x16 |
| Enhanced | 8.8mm Laminate | 3220 | 3307 | 2.5 | TIM-25x16 | TIM-25x16 |
| Enhanced | 10.8mm Laminate | 3220 | 3307 | 2.0 | TIM-25x16 | TIM-25x16 |
Our Sheffield-based manufacturing base is home to our very own painting plant, allowing you to choose from a comprehensive palette of more than 200 powder-coated RAL colours to achieve a precise match with your Granada secondary glazing system. Suitable for new developments, heritage buildings, and complex commercial environments, our finishes are specified to meet the requirements of each project.
Stocked colours available from short lead times
RAL 9003
RAL 9001
BS 08 B29
RAL 7016
RAL 9005
custom colours
Dimensions
All sizes given in mm.
Frame and panel tolerances: ±1.5mm
Maximum delivery sizes: 2,100 × 4,400mm
Glass Thickness Tolerances
- Toughened: ±0.2mm
- Laminated: ±0.4mm
- Laminate interlayer: ±0.1mm
Thermal Data
Independently verified U-value data is not currently available for the Lift Out range. Please contact our technical team for guidance on thermal performance.
Acoustic Test Conditions
All windows tested at 1,200 × 1,200mm with a 200mm air gap and 6.87mm standard laminate, against a wood-framed primary with 6mm single-glazed toughened glass.
Product Case Studies

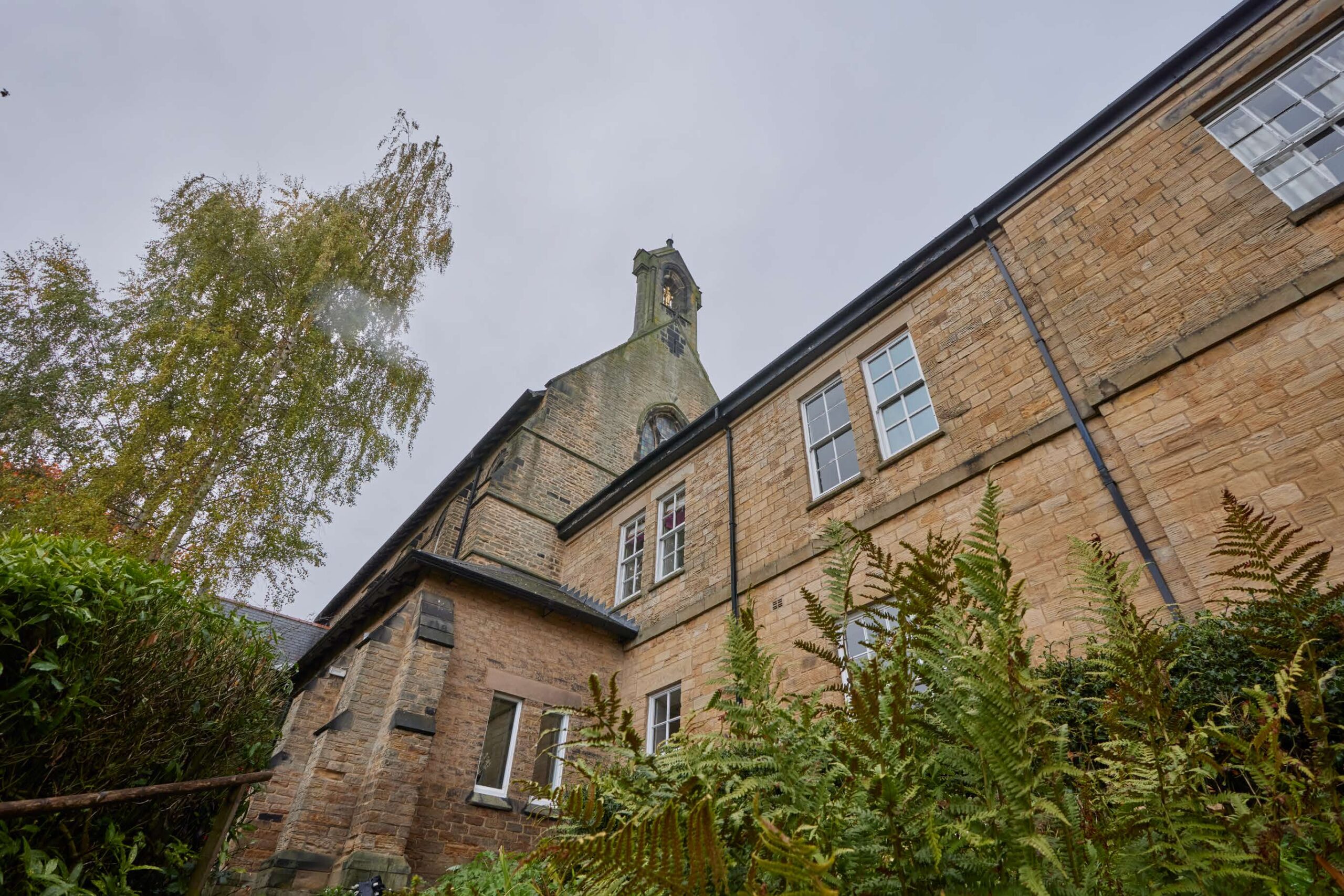

Sheffield Buddhist Centre
Secondary glazing was installed at the Sheffield Buddhist Centre to improve thermal performance, reduce draughts, and lower the building's carbon footprint. The system sits discreetly within the existing window reveals, preserving the historic frames and complying with listed-building conservation requirements. The installation has increased occupant comfort, particularly in the Great Hall, while protecting the building's heritage fabric.

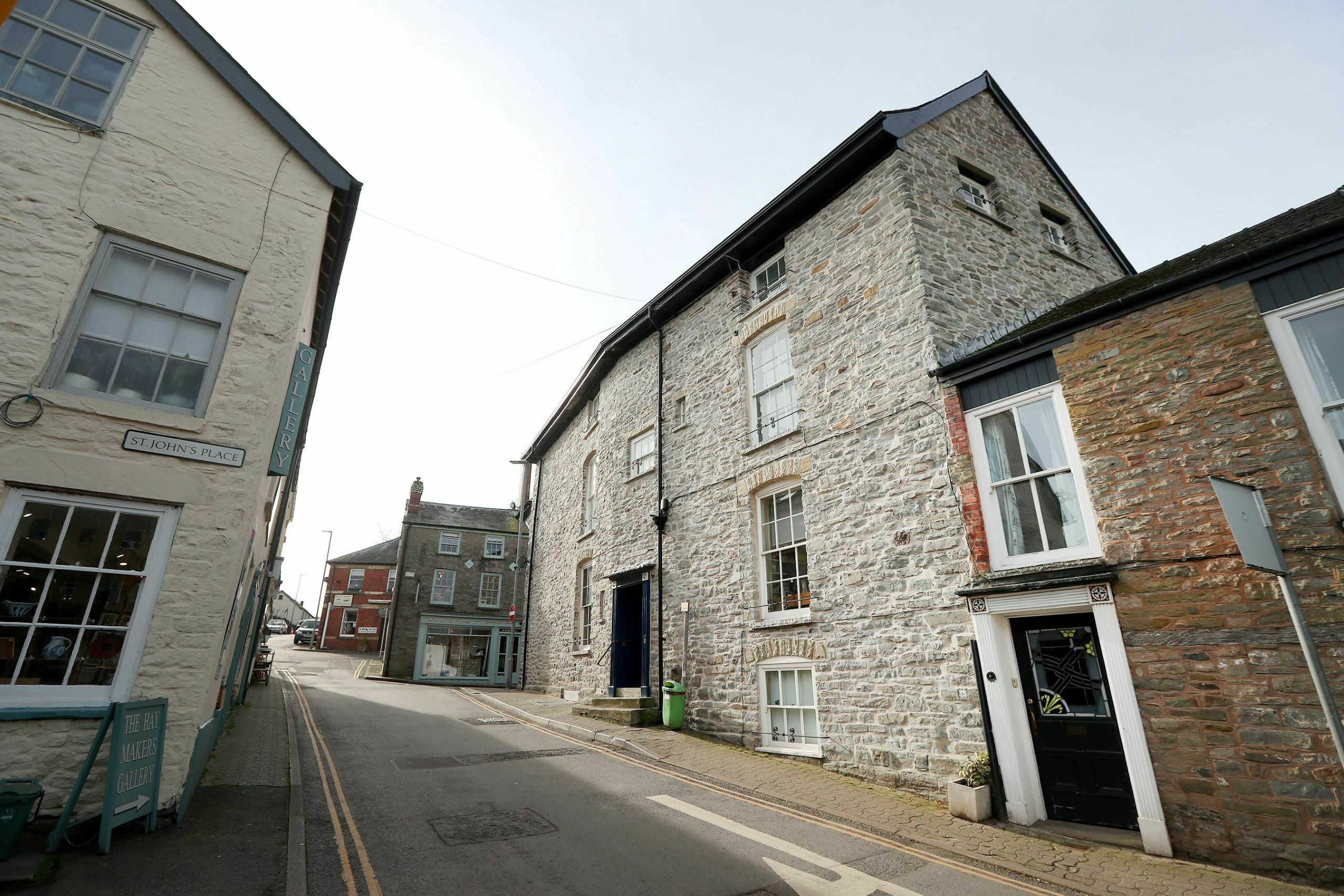

Compton House, Hay-on-Wye
Secondary glazing was installed at Compton House, a Grade II listed townhouse within the Brecon Beacons National Park conservation area, to improve thermal and acoustic performance across five residential flats. The solution enhanced occupant comfort, reduced noise intrusion, and delivered a cost-effective upgrade while retaining the original single-glazed timber sash windows and preserving the building's historic fabric.
Read full case study

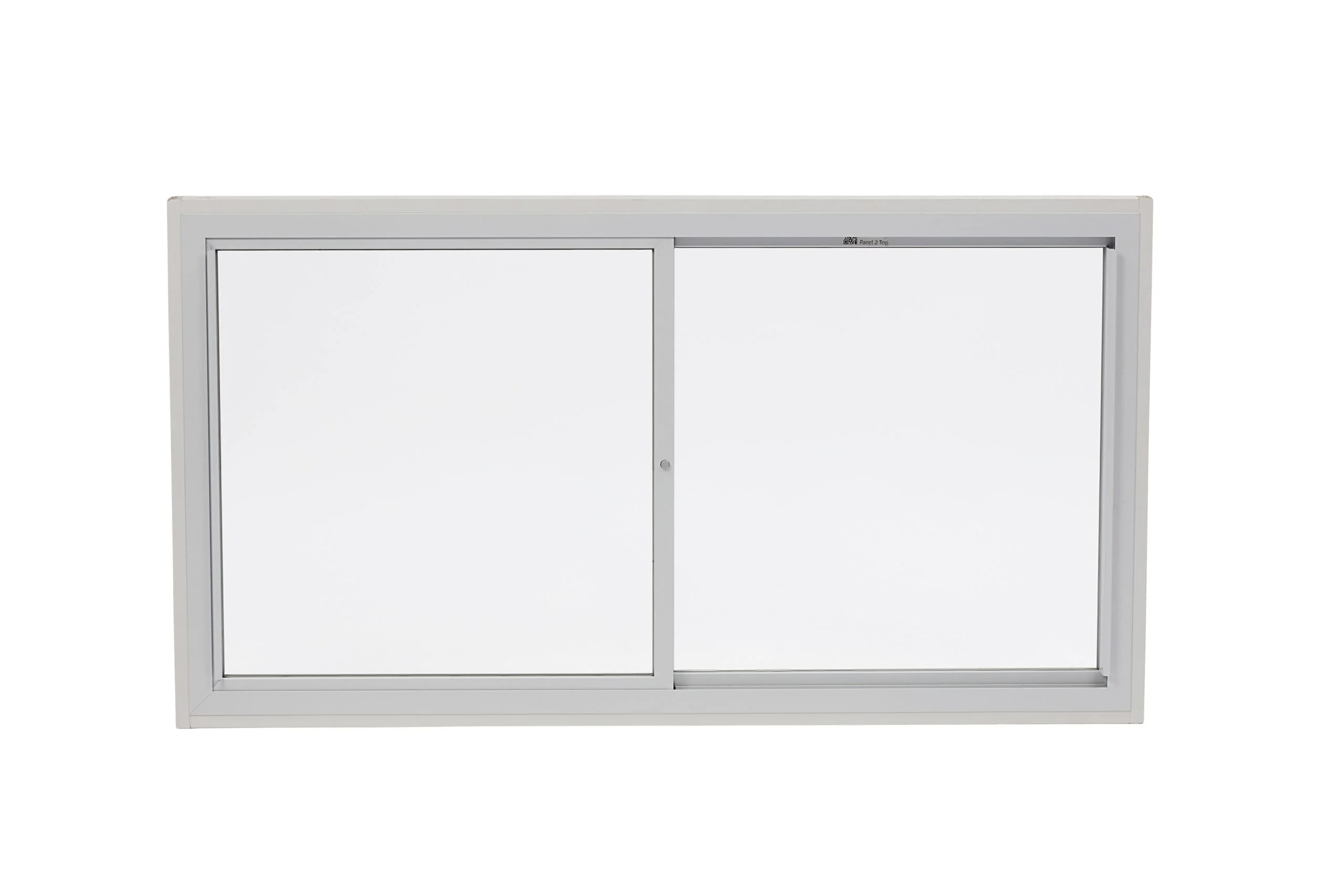

Horizontal Sliding
Smooth sliding panels for easy access and cleaning, ideal for wide window spans.
Best For: Modern and versatile spaces where easy access and style are key.
Learn More
Vertical Sliding
Tilt-to-clean functionality, easy access, smooth sliding operation, effective thermal and acoustic insulation.
Best For: Heritage properties with traditional sash windows requiring discreet solutions.
Learn More
Hinged Unit
Side or base-opening configurations with multi-point locking for enhanced security.
Best For: Commercial and residential applications requiring door-like operation.
Learn More
Fixed
Non-opening solution for permanent installations with maximum acoustic and thermal performance.
Best For: Windows that don't require regular access for cleaning or ventilation.
Learn More- Van Dyke Brown (BS 08 B29, Satin)
- Cream (RAL9001, Satin)
- Grey (RAL7016, Satin)
- Black (RAL9005, Satin)
- Granada White (RAL9003, Satin)
To ensure short lead times and offer maximum flexibility, Granada has invested in an in-house powder coating line. This allows us to provide fully customisable aluminium frames in over 200 RAL colours, giving customers the freedom to match any design aesthetic while maintaining the durability and performance expected from our secondary glazing systems.
Should you experience any issues, our dedicated customer care team is available to assist. Please contact us on 01909 499 899 for support and advice.
